AA Performance Products VW Piston & Cylinder Set, 92 x 82mm, Cast, VW9200T1S

AA Performance Products VW Piston & Cylinder Set, 92 x 82mm, Cast

AA Performance Products offers a high-quality piston and cylinder set, also known as pistons and liners, designed specifically for the Volkswagen Type-1 engine. This set features hypereutectic pistons paired with cast iron cylinders (or liners) that provide exceptional performance. The hypereutectic cast pistons are stronger than common cast aluminum pistons, making them suitable for stock replacement and certain performance engine combinations. However, it is important to note that these hypereutectic pistons are not recommended for high horsepower naturally aspirated, nitrous, supercharged, or turbo applications.

Product Note: Pistons come in two different stroke measurements often referred to as "A" Pistons or (94 x 69mm) and "B" Pistons or (94 x 82mm). Crankshaft strokes measuring 69, 74 and 76mm generally use the "A" pistons while crankshaft strokes measuring 78, 80, 82, 84 and 86mm and larger generally use the "B" pistons.

Installation Note: This part requires machine work to be performed to the engine case and cylinder heads before installation.

Piston Style: Flat Top
Material: Cast Hypereutectic
Bore: 92mm
Stroke: 82mm
Compression: 35mm
Wrist Pin Dia: 22mm
Cylinder Head Bore: 98mm
Engine Case Bore: 96mm

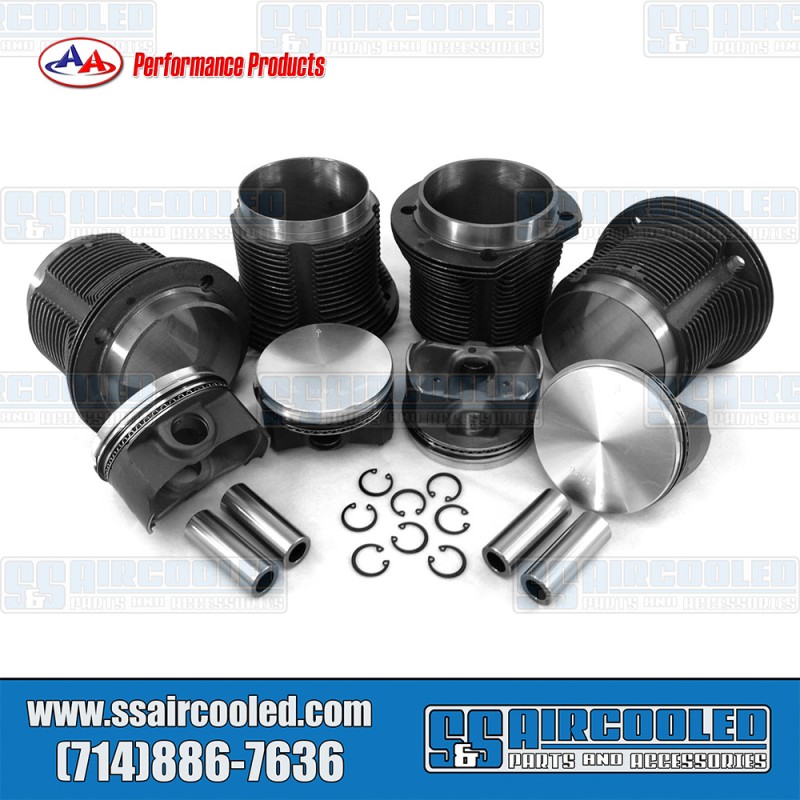

Piston & Cylinder Set Includes:

• (4) - Cast Iron Cylinders/Liners
• (4) - Cast Hypereutectic Pistons
• (4) - Piston Ring Sets
• (4) - Wrist Pins
• (8) - Wrist Pin Clips

Application Note: This is considered a universal part and can fit many different applications based on modifications to the vehicle. Application information is just for reference and not applicable to a stock vehicle configuration. Please verify your application before purchase to ensure this part is correct for your project.

AA Performance Products Piston & Cylinder Set, 92 x 82mm, Cast, Sold as Set
